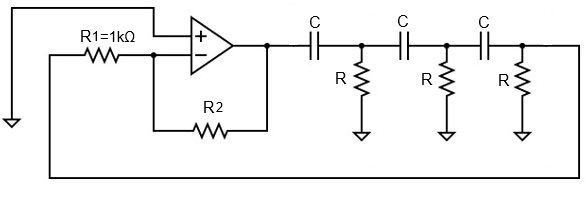

Consider a RC phase shift oscillator having operational amplifier connected as an inverting amplifier as shown in the figure. What should be the value of resistance R2 for the unity loop gain of this circuit? (Note: Any minor losses in the circuit should be neglected.)
6 kΩ
19 kΩ
29 kΩ
1 kΩ
29 kΩ
Practice and solve "Consider a RC phase shift oscillator having operational amplifier connected as an inverting amplifie..." for Part 5 Domain Knowledge - CILMTElectrical 2026. The correct answer is Option C: 29 kΩ. Detailed step-by-step solution, conceptual clarity, and formulas on Examoogle.
