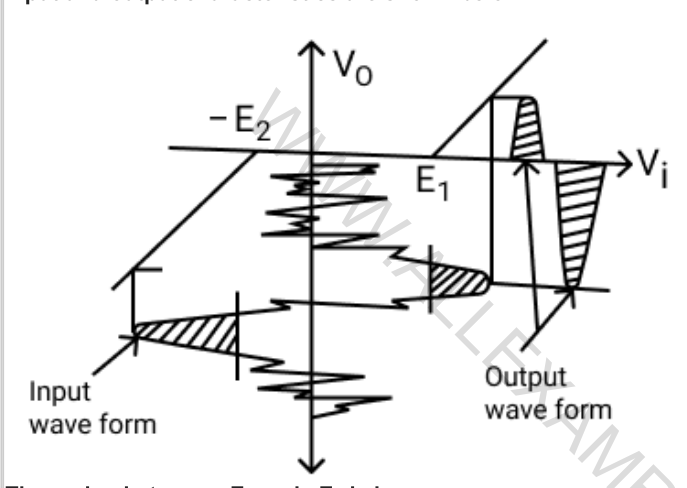

In the given circuit, if the input voltage lies between +E 1 and −E 2 , then output is zero. Input and output characteristics are shown below. WWW.ALLEXAMREVIEW.COM The region between +E 1 and −E 2 is known as _____.
active zone
cut off zone
saturation zone
dead zone
dead zone
Practice and solve "In the given circuit, if the input voltage lies between +E 1 and −E 2 , then output is zero. Input a..." for Mathematics - Previous Year Paper 2024. The correct answer is Option D: dead zone. Detailed step-by-step solution, conceptual clarity, and formulas on Examoogle.
